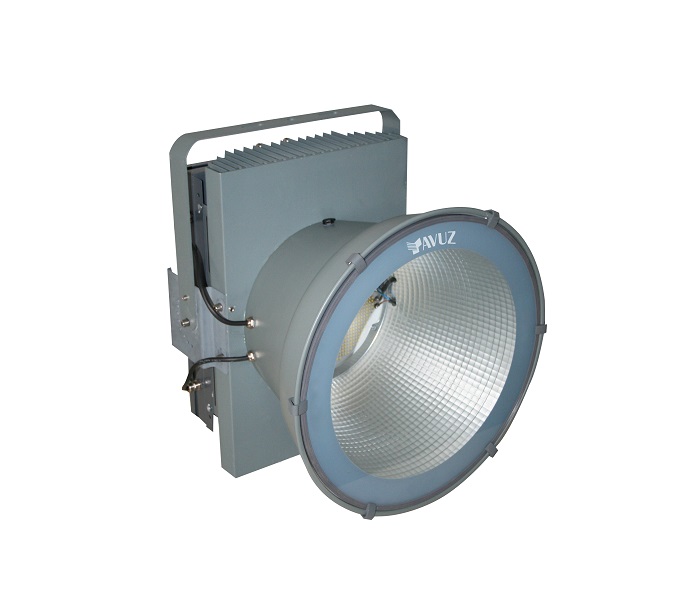

LED Projector


Installation Guide


Technical Data

Body
Aluminium Body
Diffuser
Tempered Glass
Optic
Symmetrical
Source of Light
Mid Power LED
IP Protection Class
IP65
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
10 kV
Driving Current
700 mA
Power Factor
>0.95
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Floor Mount
Product Code
VL301500
Power
500W
Lumen
59.145
Weight
15,50
Dimensions(mm)
451 x 476 x 91
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL301600
Power
600W
Lumen
70.809
Weight
16,50
Dimensions(mm)
451 x 476 x 91
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL301700
Power
700W
Lumen
82.614
Weight
16,50
Dimensions(mm)
451 x 476 x 91
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL301800
Power
800W
Lumen
94.403
Weight
17,50
Dimensions(mm)
451 x 476 x 91
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL301900
Power
900W
Lumen
100.087
Weight
18,00
Dimensions(mm)
451 x 476 x 91
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL3011000
Power
1000W
Lumen
118.132
Weight
18,00
Dimensions(mm)
451 x 476 x 91
Datasheet /
Datasheet
LDT /
Ldt
