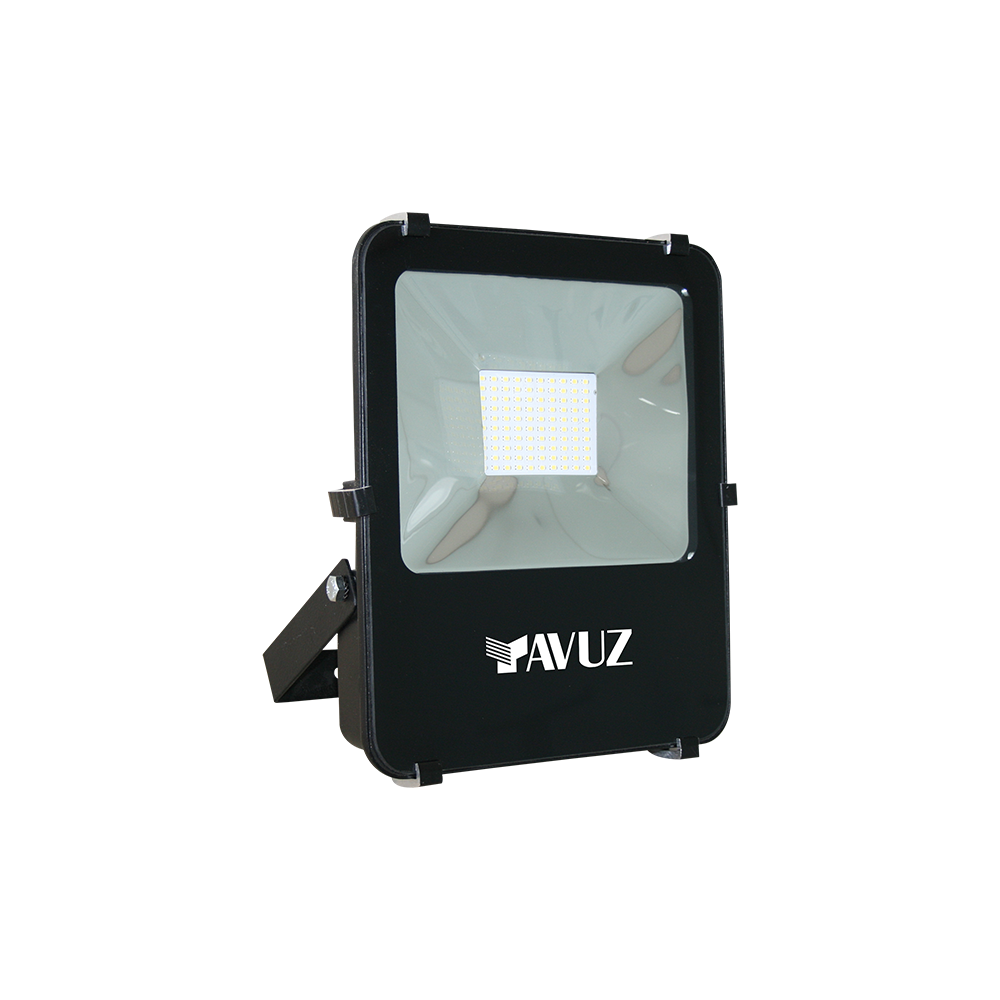

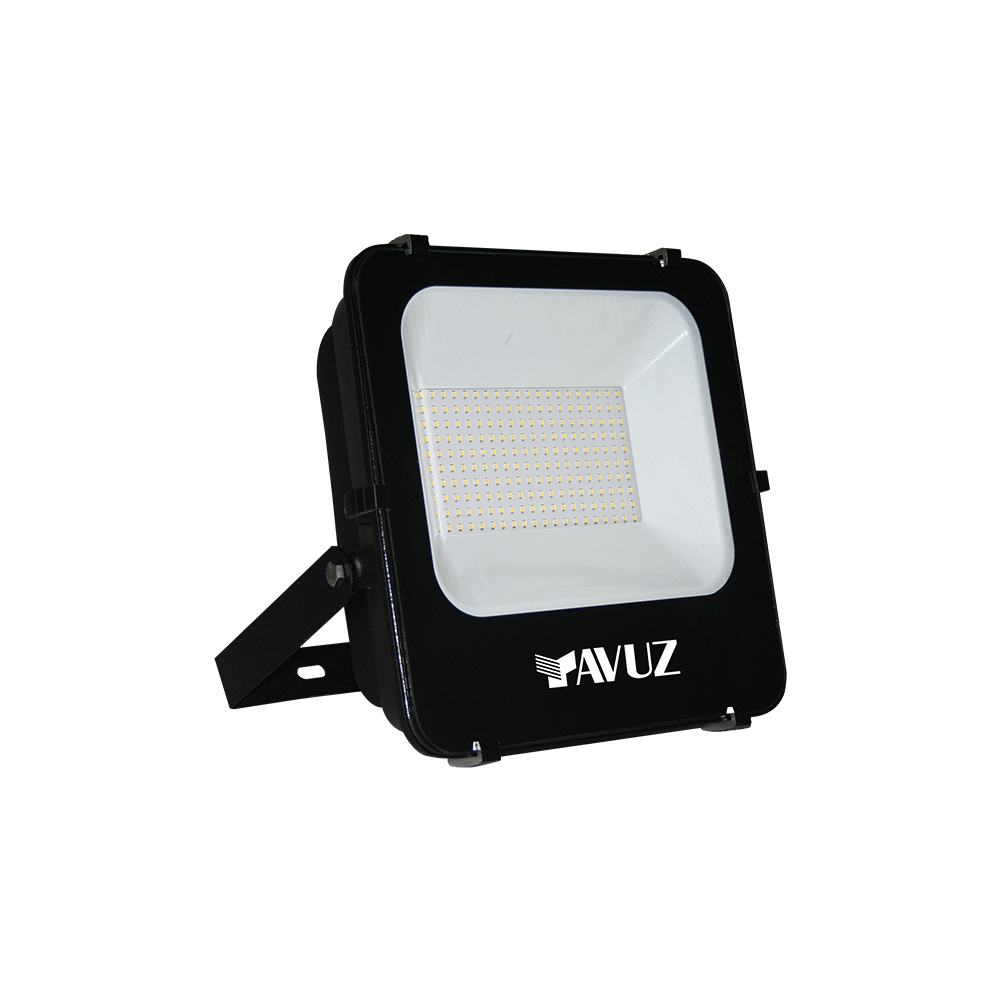

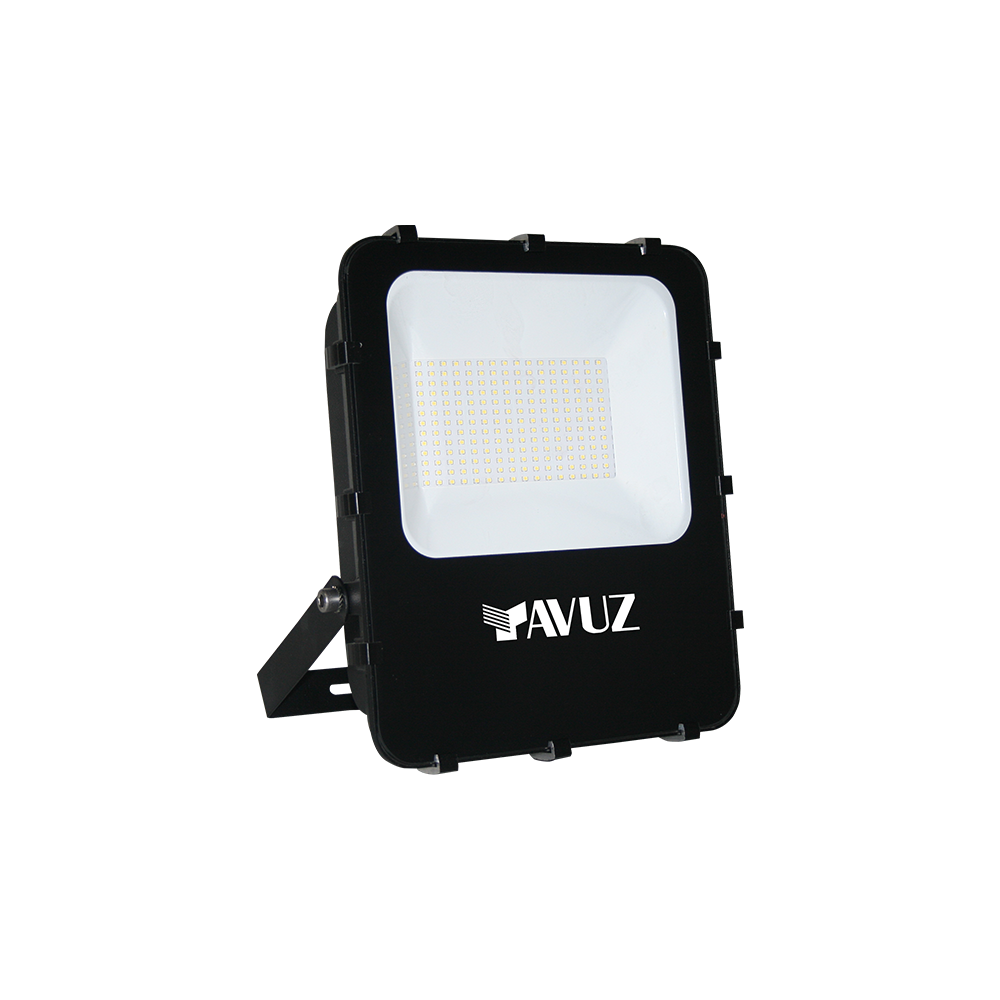

LED Projector


Installation Guide


Technical Data

Body Aluminium Injection Body
Diffuser Tempered Glass
Optic Symmetrical
Source of Light Mid Power Led
IP Protection Class IP65
Impact Resistance (IK) IK10
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 2 kV
Driving Current 700 mA
Power Factor >0.9
Color Rendering Index >80
Led Life 100.000 Hour
Usage Floor Mount
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

LED Projector

Details..

Projector - Stadium Luminaire

Details..

LED Projector

Details..

LED Projector

Details..

Projector - Stadium Luminaire

Details..

LED Floodlight - Front and Area Luminaries

Details..

LED Projector

Details..

LED Projector

Details..

LED Floodlight - Front and Area Luminaries

Details..

LED Projector

Details..

LED Projector

Details..
Center Office & Showroom

Bankalar Cad. Yanıkkapı Porsuk Sok. Köse Han No 2/1 Karaköy / İstanbul



yavuzpano@yavuzpano.com.tr


T : +90 212 254 39 21
F : +90 212 254 39 64
Kocaeli Factory

Cumhuriyet Mah. Selin Sok. No : 3
Çayırova/Gebze/Kocaeli/TÜRKİYE



yavuzpano@yavuzpano.com.tr


T : +90 262 658 15 11 Pbx
F : +90 262 658 15 12
Follow Me

Do not forget to follow us on Social Media to be informed about the latest developments about us.

All Rights Reserved YAVUZ Pano Aydınlatma © 2020
LED Projector


Installation Guide


Technical Data

Body
Aluminium Injection Body
Diffuser
Tempered Glass
Optic
Symmetrical
Source of Light
Mid Power Led
IP Protection Class
IP65
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.9
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Floor Mount
Product Code
VL519030
Power
30W
Lumen
3.200
Weight
1,03
Dimensions(mm)
285 x 194 x 48
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519050
Power
50W
Lumen
5.333
Weight
1,10
Dimensions(mm)
285 x 194 x 48
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519075
Power
75W
Lumen
8.733
Weight
2,04
Dimensions(mm)
335 x 242 x 57
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519100
Power
100W
Lumen
10.166
Weight
3,20
Dimensions(mm)
325 x 296 x 80
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519150
Power
150W
Lumen
15.999
Weight
4,11
Dimensions(mm)
390 x 318 x 82
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519200
Power
200W
Lumen
21.332
Weight
4,25
Dimensions(mm)
390 x 318 x 82
Datasheet /
Datasheet
LDT /
Ldt
