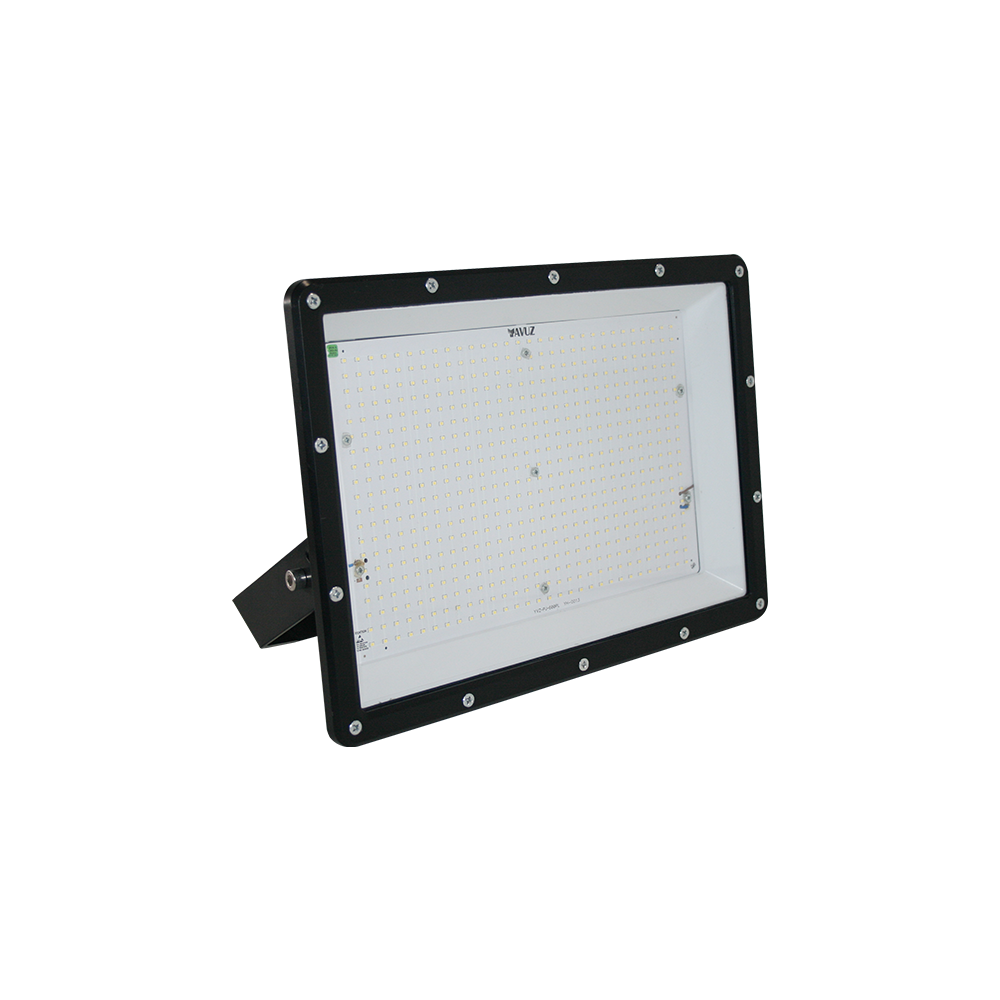

LED Projector


Installation Guide


Technical Data

Body Aluminium Injection Body
Diffuser Tempered Glass
Optic Symmetrical
Source of Light Mid Power Led
IP Protection Class IP65
Impact Resistance (IK) IK10
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 2 kV
Driving Current 700 mA
Power Factor >0.9
Color Rendering Index >80
Led Life 100.000 Hour
Usage Floor Mount
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

LED Projector

Details..

Projector - Stadium Luminaire

Details..

LED Projector

Details..

LED Projector

Details..

Projector - Stadium Luminaire

Details..

LED Floodlight - Front and Area Luminaries

Details..

LED Projector

Details..

LED Projector

Details..

LED Floodlight - Front and Area Luminaries

Details..

LED Projector

Details..

LED Projector

Details..
Center Office & Showroom

Bankalar Cad. Yanıkkapı Porsuk Sok. Köse Han No 2/1 Karaköy / İstanbul



yavuzpano@yavuzpano.com.tr


T : +90 212 254 39 21
F : +90 212 254 39 64
Kocaeli Factory

Cumhuriyet Mah. Selin Sok. No : 3
Çayırova/Gebze/Kocaeli/TÜRKİYE



yavuzpano@yavuzpano.com.tr


T : +90 262 658 15 11 Pbx
F : +90 262 658 15 12
Follow Me

Do not forget to follow us on Social Media to be informed about the latest developments about us.

All Rights Reserved YAVUZ Pano Aydınlatma © 2020
LED Projector


Installation Guide


Technical Data

Body
Aluminium Injection Body
Diffuser
Tempered Glass
Optic
Symmetrical
Source of Light
Mid Power Led
IP Protection Class
IP65
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.9
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Floor Mount
Product Code
VL519250
Power
250W
Lumen
29.265
Weight
5,45
Dimensions(mm)
480 x 403 x 91
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519300
Power
300W
Lumen
33.151
Weight
6,45
Dimensions(mm)
480 x 403 x 91
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519400
Power
400W
Lumen
56.024
Weight
8,80
Dimensions(mm)
451 x 476 x 140
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519500
Power
500W
Lumen
67.090
Weight
9,00
Dimensions(mm)
451 x 476 x 140
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519600
Power
600W
Lumen
77.164
Weight
14,90
Dimensions(mm)
468 x 773 x 94
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519700
Power
700W
Lumen
86.090
Weight
15,10
Dimensions(mm)
468 x 773 x 94
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519800
Power
800W
Lumen
94.604
Weight
15,30
Dimensions(mm)
468 x 773 x 94
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL519900
Power
900W
Lumen
102.733
Weight
15,50
Dimensions(mm)
468 x 773 x 94
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL5191000
Power
1000W
Lumen
110.000
Weight
15,70
Dimensions(mm)
468 x 773 x 94
Datasheet /
Datasheet
LDT /
Ldt
