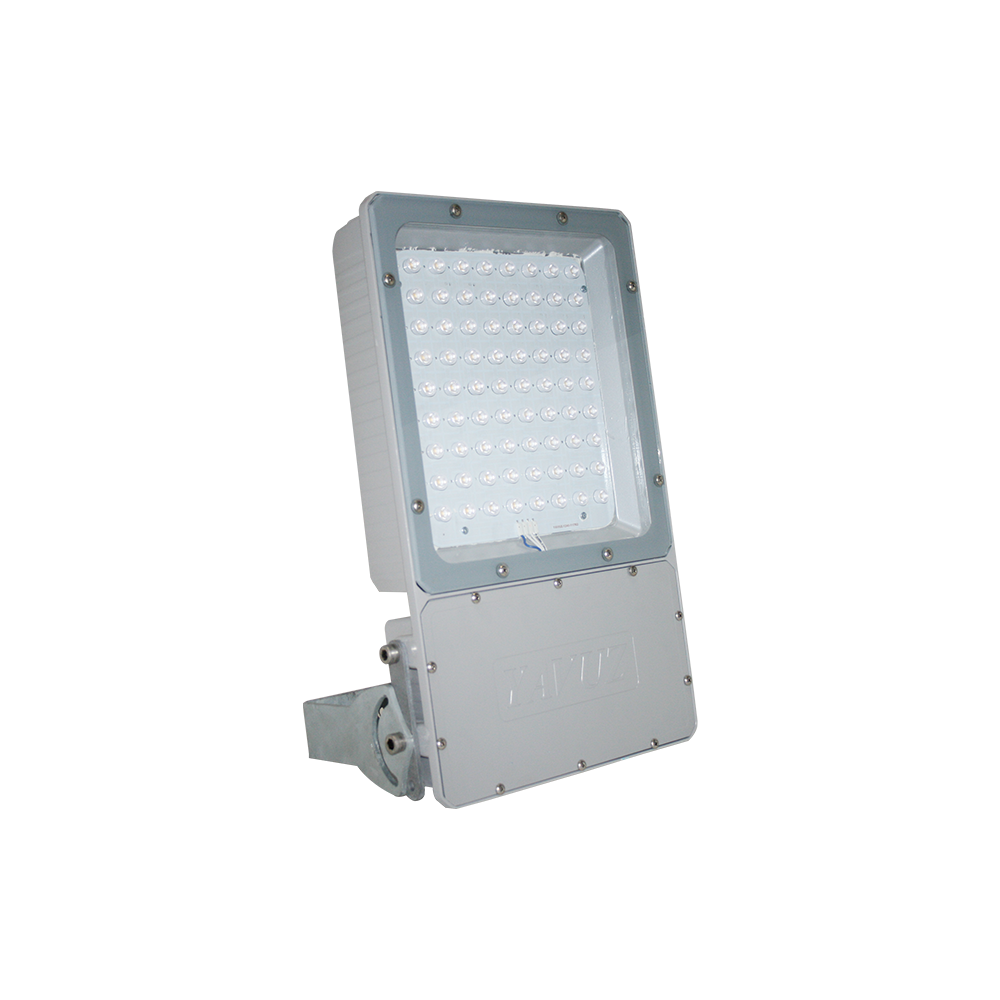

LED Projector

Installation Guide Technical Data Diffuser Tempered Glass Optic Symmetrical Source of Light High / Mid Power Led IP Protection Class IP67 Impact Resistance (IK) IK10 Input Voltage 220-240V AC 50/60 Hz Max. Voltage Strength 2-10 kV Driving Current 700 mA Power Factor >0.9 Color Rendering Index >80 Led Life 60.000 Hour Usage Floor Mount

---

Product Code VL508045-M

Power 45W

Lumen 6.350

Weight 7,34

Dimensions(mm) 480 x 326 x 90

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL508060-M

Power 60W

Lumen 8.139

Weight 7,50

Dimensions(mm) 480 x 326 x 90

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL508075-M

Power 80W

Lumen 10.316

Weight 7,51

Dimensions(mm) 480 x 326 x 90

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL508090-M

Power 100W

Lumen 12.318

Weight 7,72

Dimensions(mm) 480 x 326 x 90

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL508120-M

Power 120W

Lumen 14.416

Weight 7,90

Dimensions(mm) 480 x 326 x 90

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL508150-M

Power 150W

Lumen 18.025

Weight 7,90

Dimensions(mm) 480 x 326 x 90

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL508180-M

Power 180W

Lumen 21.600

Weight 8,00

Dimensions(mm) 480 x 326 x 90

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL508200-M

Power 200W

Lumen 24.627

Weight 8,00

Dimensions(mm) 480 x 326 x 90

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL508250-M

Power 250W

Lumen 30.045

Weight 9,66

Dimensions(mm) 587 x 340 x 90

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL508300-M

Power 300W

Lumen 36.175

Weight 10,16

Dimensions(mm) 587 x 340 x 90

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL508400-M

Power 400W

Lumen 59.071

Weight 11,83

Dimensions(mm) 587 x 340 x 143

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL508500-M

Power 500W

Lumen 70.654

Weight 11,83

Dimensions(mm) 587 x 340 x 143

Datasheet / Datasheet

LDT / Ldt

---
