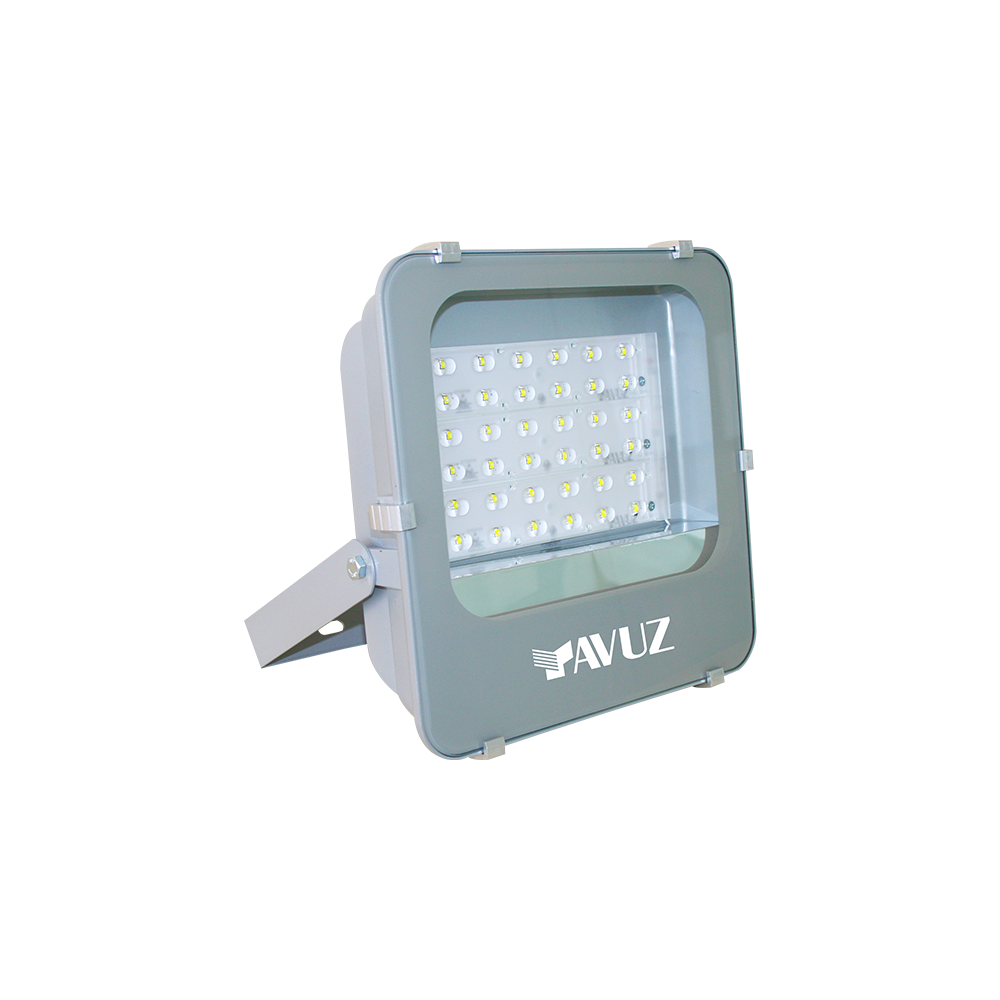

LED Projector


Installation Guide


Technical Data

Body Aluminium Injection Body
Diffuser Tempered Glass
Optic Symmetrical
Source of Light Power Led
IP Protection Class IP66
Impact Resistance (IK) IK10
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 6-10 kV
Driving Current 700 mA
Power Factor >0.95
Color Rendering Index >80
Led Life 100.000 Hour
Usage Floor Mount
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

LED Projector

Details..

LED Projector

Details..

LED Floodlight - Front and Area Luminaries

Details..

LED Projector

Details..

LED Floodlight - Front and Area Luminaries

Details..

LED Projector

Details..

LED Projector

Details..
Center Office & Showroom

Bankalar Cad. Yanıkkapı Porsuk Sok. Köse Han No 2/1 Karaköy / İstanbul



yavuzpano@yavuzpano.com.tr


T : +90 212 254 39 21
F : +90 212 254 39 64
Kocaeli Factory

Cumhuriyet Mah. Selin Sok. No : 3
Çayırova/Gebze/Kocaeli/TÜRKİYE



yavuzpano@yavuzpano.com.tr


T : +90 262 658 15 11 Pbx
F : +90 262 658 15 12
Follow Me

Do not forget to follow us on Social Media to be informed about the latest developments about us.

All Rights Reserved YAVUZ Pano Aydınlatma © 2020
LED Projector


Installation Guide


Technical Data

Body
Aluminium Injection Body
Diffuser
Tempered Glass
Optic
Symmetrical
Source of Light
Power Led
IP Protection Class
IP66
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
6-10 kV
Driving Current
700 mA
Power Factor
>0.95
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Floor Mount
Product Code
VL508030
Power
30W
Lumen
3960
Weight
1,2
Dimensions(mm)
269 x 231 x 48
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL508045
Power
45W
Lumen
5985
Weight
1,2
Dimensions(mm)
269 x 231 x 48
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL508060
Power
60W
Lumen
8040
Weight
1,2
Dimensions(mm)
269 x 231 x 48
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL508075
Power
75W
Lumen
9900
Weight
1,9
Dimensions(mm)
304 x 281 x 56
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL508090
Power
100W
Lumen
13300
Weight
1,9
Dimensions(mm)
304 x 281 x 56
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL508120
Power
120W
Lumen
15840
Weight
3,1
Dimensions(mm)
356 x 338 x 60
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL508150
Power
150W
Lumen
19950
Weight
3,1
Dimensions(mm)
356 x 338 x 60
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL508200
Power
200W
Lumen
26800
Weight
3,3
Dimensions(mm)
356 x 338 x 60
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL508250-X
Power
250W
Lumen
33000
Weight
4,6
Dimensions(mm)
435 x 384 x 62
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL508300-X
Power
300W
Lumen
39900
Weight
4,6
Dimensions(mm)
435 x 384 x 62
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL508400-X
Power
400W
Lumen
53600
Weight
6,7
Dimensions(mm)
506 x 460 x 70
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL508500-X
Power
500W
Lumen
66000
Weight
6,7
Dimensions(mm)
506 x 460 x 70
Datasheet /
Datasheet
LDT /
Ldt
