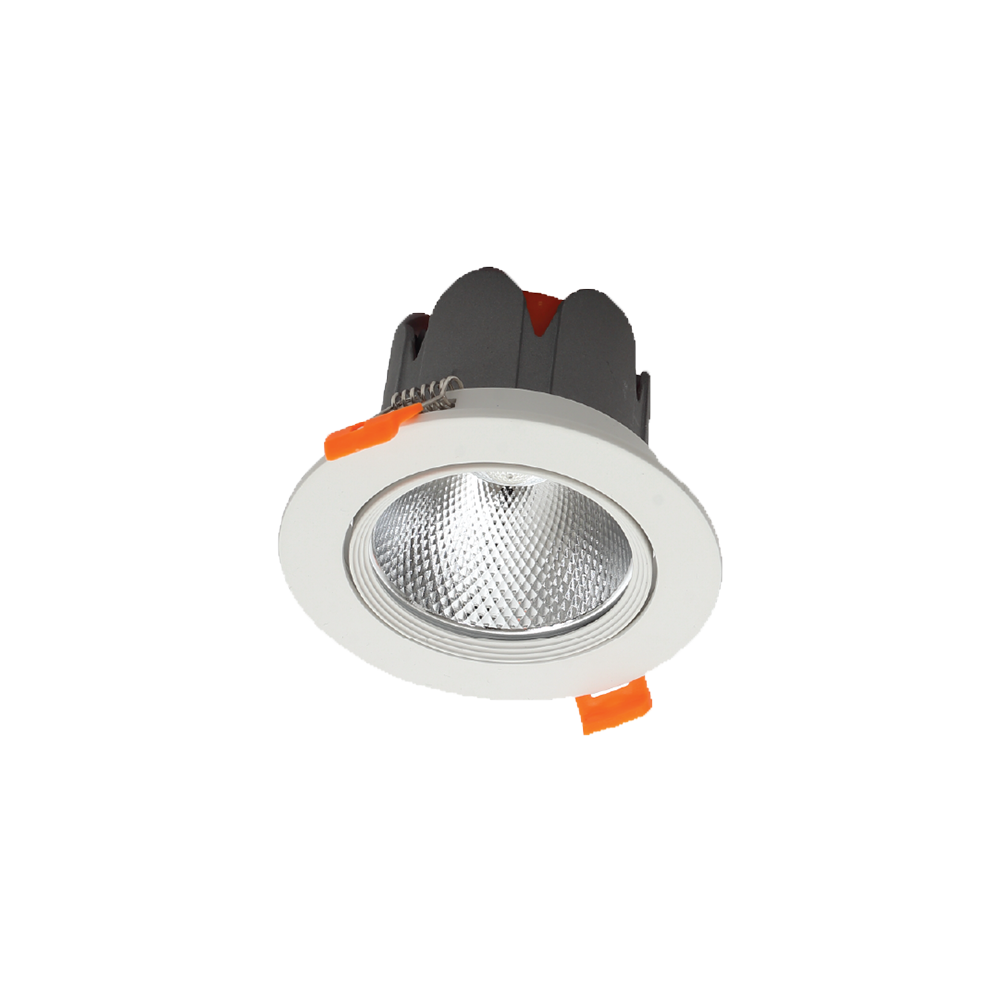

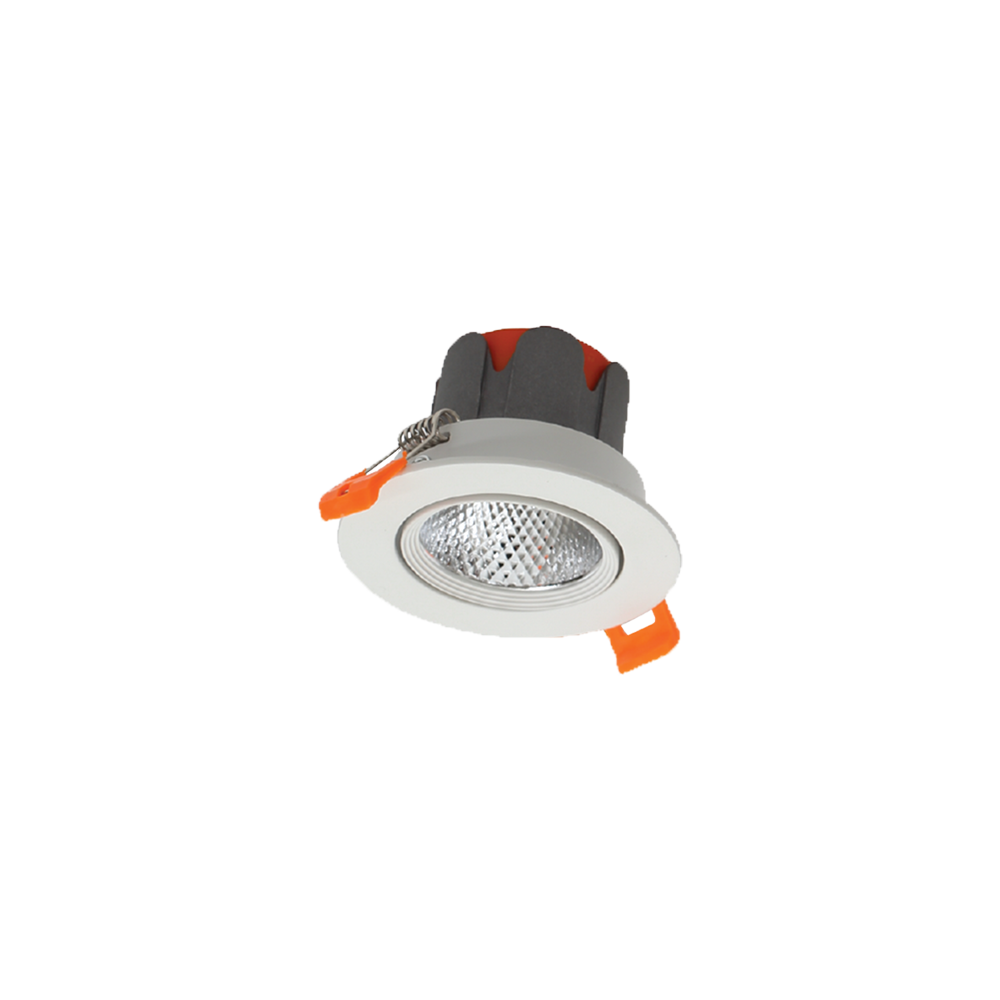

Recessed Spotlight Luminaire


Installation Guide


Technical Data

Body Aluminium Body
Diffuser Reflector + Glass
Optic -
Source of Light COB LED
IP Protection Class IP40
Impact Resistance (IK) IK05
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 2 kV
Driving Current 700 mA
Power Factor >0.9
Color Rendering Index >80
Led Life 60.000 Hour
Usage Recessed Mounted
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

RİO - BACKLIGHT DOWNLIGHT

Details..

Recessed Spotlight Luminaire

Details..

Rio-Su

Details..

Recessed Spotlight Luminaire

Details..

Recessed Downlight Luminaire

Details..

Recessed Downlight Luminaire

Details..
Center Office & Showroom

Bankalar Cad. Yanıkkapı Porsuk Sok. Köse Han No 2/1 Karaköy / İstanbul



yavuzpano@yavuzpano.com.tr


T : +90 212 254 39 21
F : +90 212 254 39 64
Kocaeli Factory

Cumhuriyet Mah. Selin Sok. No : 3
Çayırova/Gebze/Kocaeli/TÜRKİYE



yavuzpano@yavuzpano.com.tr


T : +90 262 658 15 11 Pbx
F : +90 262 658 15 12
Follow Me

Do not forget to follow us on Social Media to be informed about the latest developments about us.

All Rights Reserved YAVUZ Pano Aydınlatma © 2020
Recessed Spotlight Luminaire


Installation Guide


Technical Data

Body
Aluminium Body
Diffuser
Reflector + Glass
Optic
-
Source of Light
COB LED
IP Protection Class
IP40
Impact Resistance (IK)
IK05
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.9
Color Rendering Index
>80
Led Life
60.000 Hour
Usage
Recessed Mounted
Product Code
VL480008
Power
8 W
Lumen
600
Weight
030
Dimensions(mm)
108 x 108 x 70
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL480015
Power
15 W
Lumen
1.200
Weight
0,45
Dimensions(mm)
138 x 138 x 80
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL480020
Power
20 W
Lumen
1500
Weight
0,45
Dimensions(mm)
138 x 138 x 80
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL480030
Power
30 W
Lumen
2250
Weight
0,60
Dimensions(mm)
160 x 160 x 90
Datasheet /
Datasheet
LDT /
Ldt
