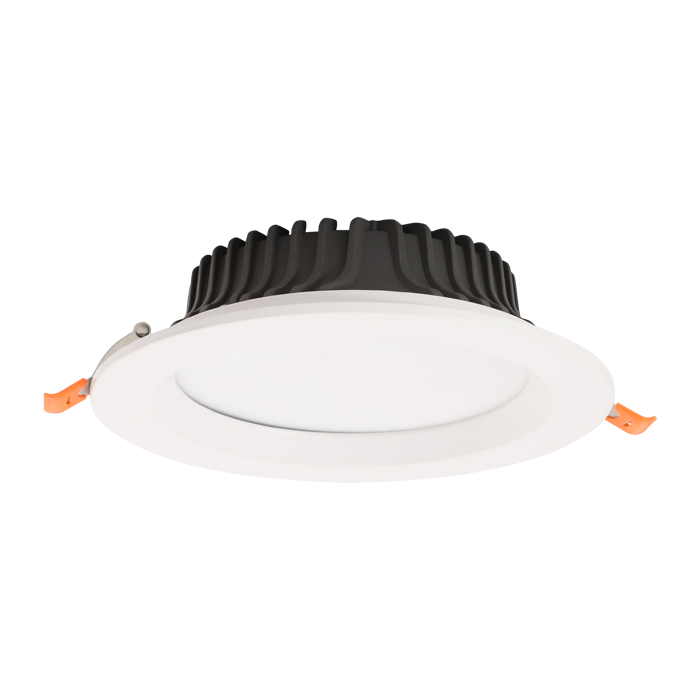

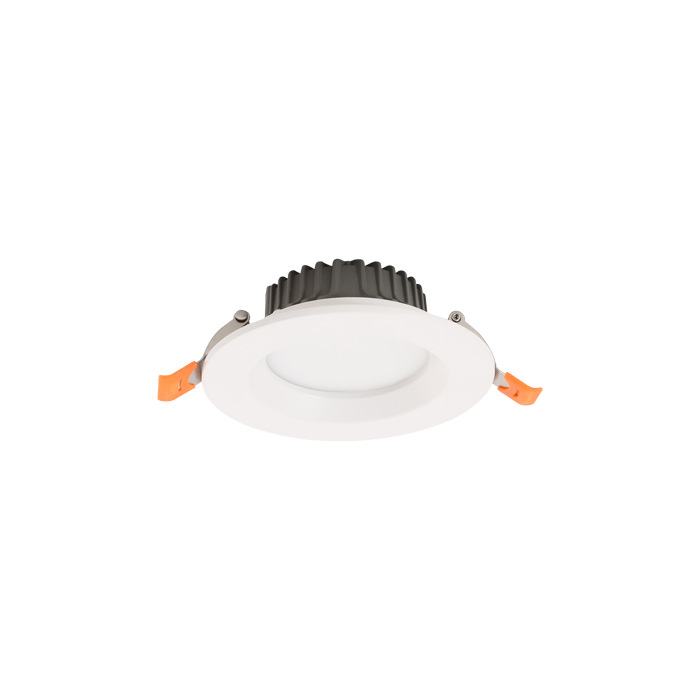

Recessed Downlight Luminaire


Installation Guide


Technical Data

Body Aluminium Body
Diffuser Opaque Diffuser
Optic -
Solar Panel Power Mid Power LED
IP Protection Class IP40
Impact Resistance (IK) IK08
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 2 kV
Driving Current 700 mA
Power Factor >0.9
Color Rendering Index >80
Led Life 100.000 Hour
Usage Recessed Mounted
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

RİO - BACKLIGHT DOWNLIGHT

Details..

Recessed Spotlight Luminaire

Details..

Rio-Su

Details..

Recessed Spotlight Luminaire

Details..

Recessed Downlight Luminaire

Details..

Recessed Downlight Luminaire

Details..
Center Office & Showroom

Bankalar Cad. Yanıkkapı Porsuk Sok. Köse Han No 2/1 Karaköy / İstanbul



yavuzpano@yavuzpano.com.tr


T : +90 212 254 39 21
F : +90 212 254 39 64
Kocaeli Factory

Cumhuriyet Mah. Selin Sok. No : 3
Çayırova/Gebze/Kocaeli/TÜRKİYE



yavuzpano@yavuzpano.com.tr


T : +90 262 658 15 11 Pbx
F : +90 262 658 15 12
Follow Me

Do not forget to follow us on Social Media to be informed about the latest developments about us.

All Rights Reserved YAVUZ Pano Aydınlatma © 2020
Recessed Downlight Luminaire


Installation Guide


Technical Data

Body
Aluminium Body
Diffuser
Opaque Diffuser
Optic
-
Solar Panel Power
Mid Power LED
IP Protection Class
IP40
Impact Resistance (IK)
IK08
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.9
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Recessed Mounted
Product Code
VL493008
Power
8W
Lumen
806
Weight
0,20
Dimensions(mm)
94 x 94 x 46 x 70
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL493012
Power
12W
Lumen
1.205
Weight
0,30
Dimensions(mm)
114 x 114 x 40 x 97
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL493018
Power
18W
Lumen
1.813
Weight
0,40
Dimensions(mm)
139 x 139 x 45 x 119
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL493024
Power
24W
Lumen
2.413
Weight
0,56
Dimensions(mm)
169 x 169 x 46 x 150
Datasheet /
Datasheet
LDT /
Ldt
