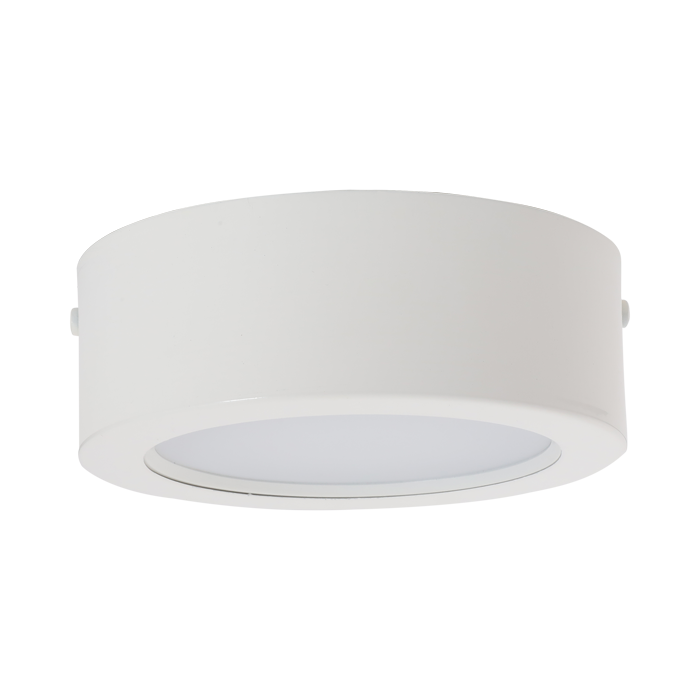

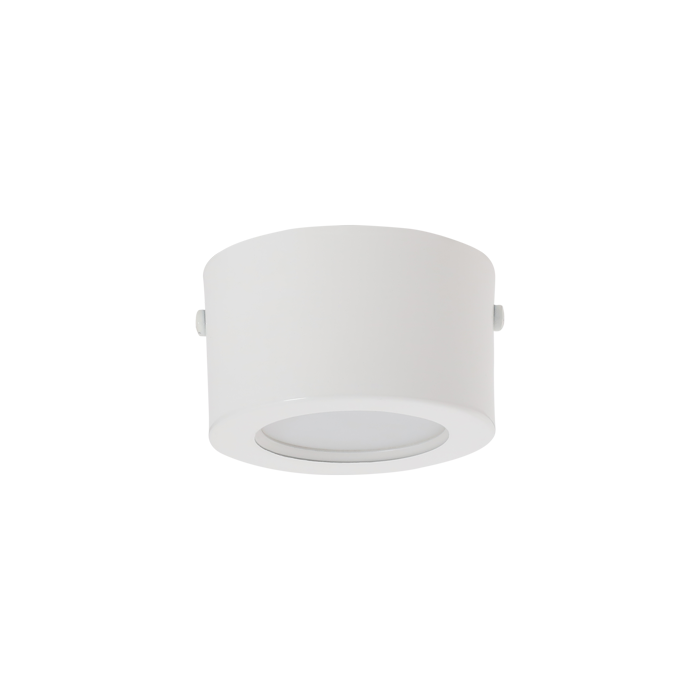

Rio-Su


Installation Guide


Technical Data

Body Aluminium Body - Aluminium Frame
Diffuser Opaque Diffuser
Optic -
Source of Light Mid Power LED
IP Protection Class IP40
Impact Resistance (IK) IK05
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 2 kV
Driving Current 700 mA
Power Factor >0.95
Color Rendering Index >80
Led Life 100.000 Hour
Usage Surface Mounted
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT
VL491008-SÜ 8W 805 0,20 100 x 100 x 50 Datasheet Ldt
VL491012-SÜ 12W 1.204 0,34 126 x 126 x 52 Datasheet Ldt
VL491018-SÜ 18W 1.810 0,39 190 x 190 x 54 Datasheet Ldt
VL491024-SÜ 24W 2.408 0,39 190 x 190 x 54 Datasheet Ldt
