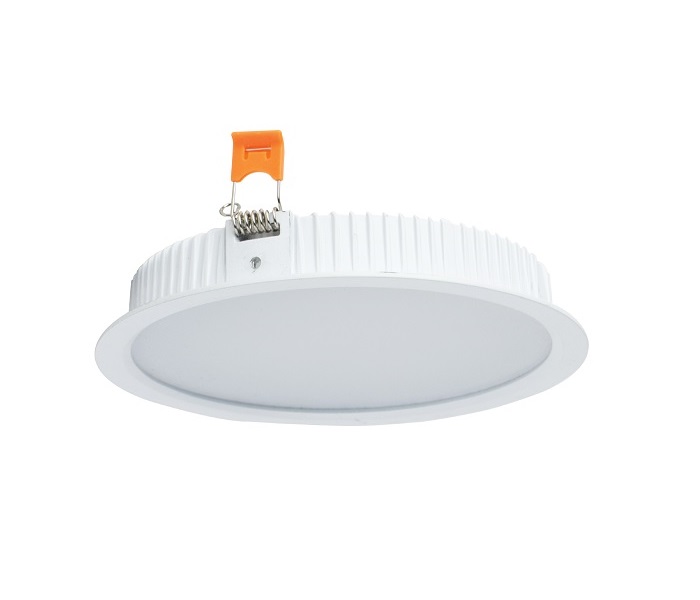

RİO - BACKLIGHT DOWNLIGHT


Installation Guide


Technical Data

Body
Aluminium Body
Diffuser
Opaque Diffuser
Optic
-
Source of Light
Mid Power LED
IP Protection Class
IP40
Impact Resistance (IK)
IK05
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Input Voltage
>0.95
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Recessed Mounted
Product Code
VL491008
Power
8W
Lumen
805
Weight
0,11
Dimensions(mm)
98 x 98 x 32 x 70
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL491012
Power
12W
Lumen
1.204
Weight
0,22
Dimensions(mm)
98 x 98 x 32 x 90
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL491018
Power
18W
Lumen
1.810
Weight
0,24
Dimensions(mm)
180 x 180 x 32 x 145
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL491024
Power
24W
Lumen
2.408
Weight
0,24
Dimensions(mm)
180 x 180 x 32 x 145
Datasheet /
Datasheet
LDT /
Ldt
