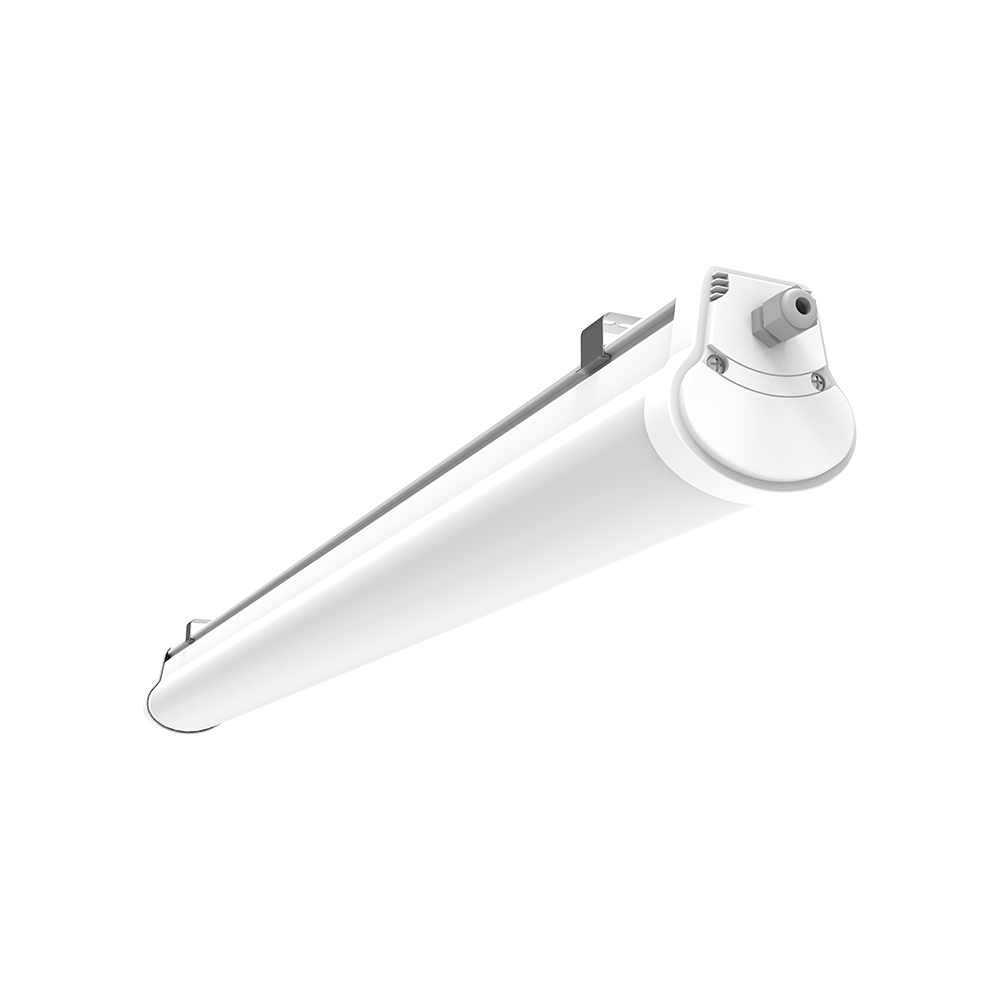

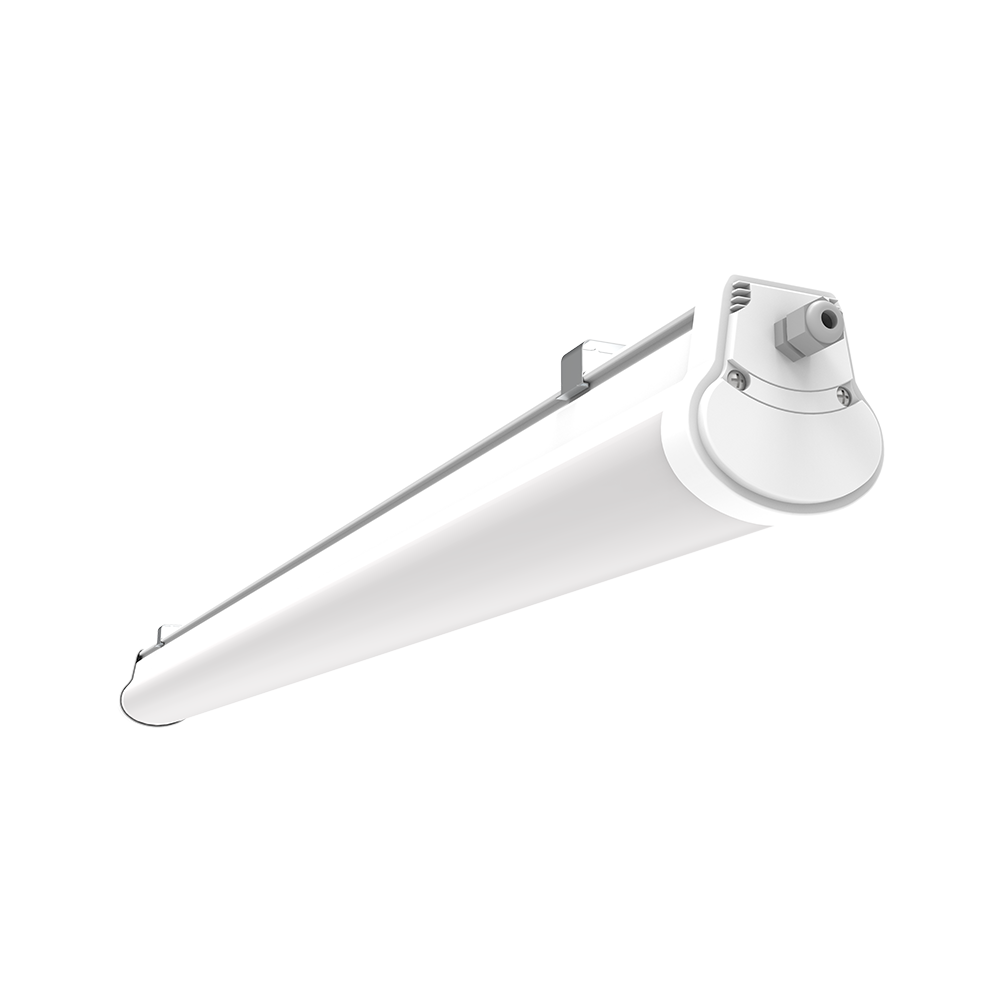

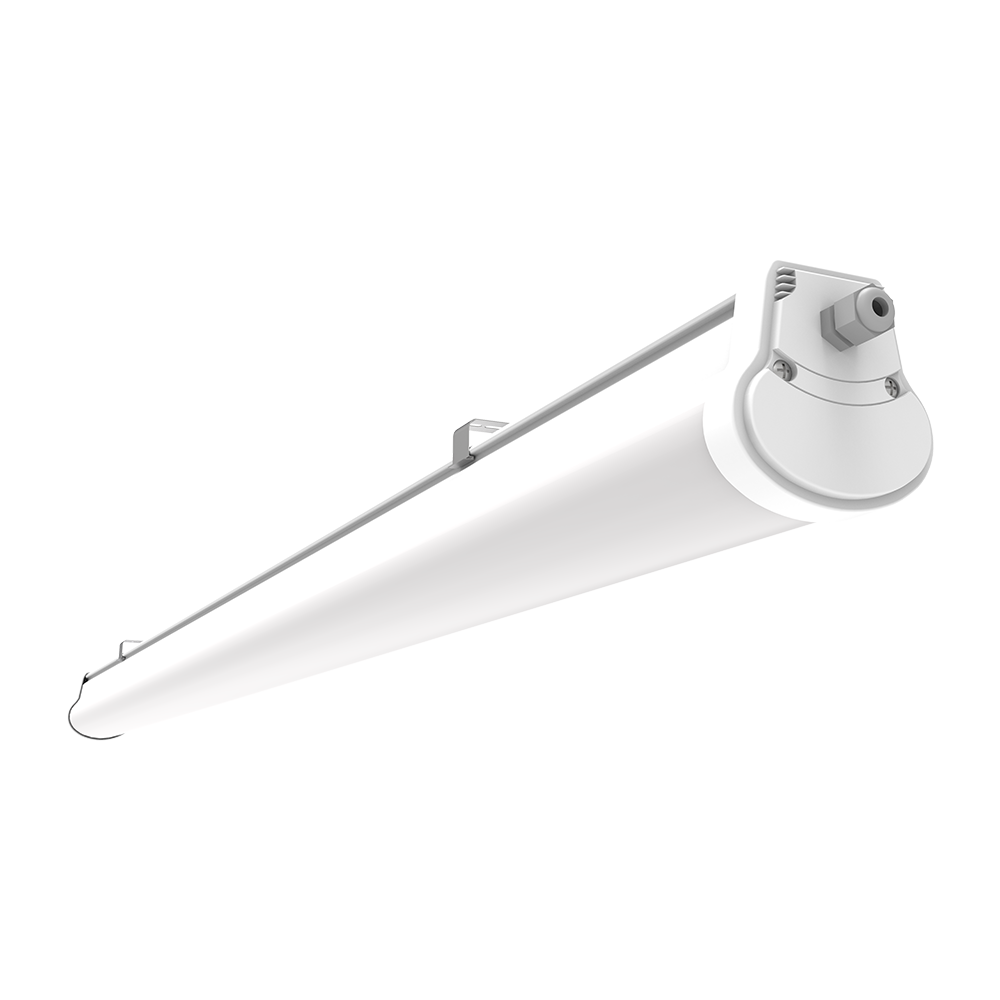

KUZGUN - LED WATERPROOF


Installation Guide


Technical Data

Body
Polycarbonate Monolithic Body
Diffuser
Opal Diffuser
Optic
-
Source of Light
Mid Power LED
IP Protection Class
IP65
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.95
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Surface Mounted
Product Code
VL569018
Power
18W
Lumen
1.810
Weight
0,62
Dimensions(mm)
611 x 82 x 82
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL569030
Power
30W
Lumen
3.051
Weight
0,89
Dimensions(mm)
1032 x 82 x 82
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL569036
Power
36W
Lumen
3.603
Weight
1,07
Dimensions(mm)
1191 x 82 x 82
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL569045
Power
45W
Lumen
4.518
Weight
1,07
Dimensions(mm)
1191 x 82 x 82
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL569055
Power
55W
Lumen
5.627
Weight
1,40
Dimensions(mm)
1511 x 82 x 82
Datasheet /
Datasheet
LDT /
Ldt
