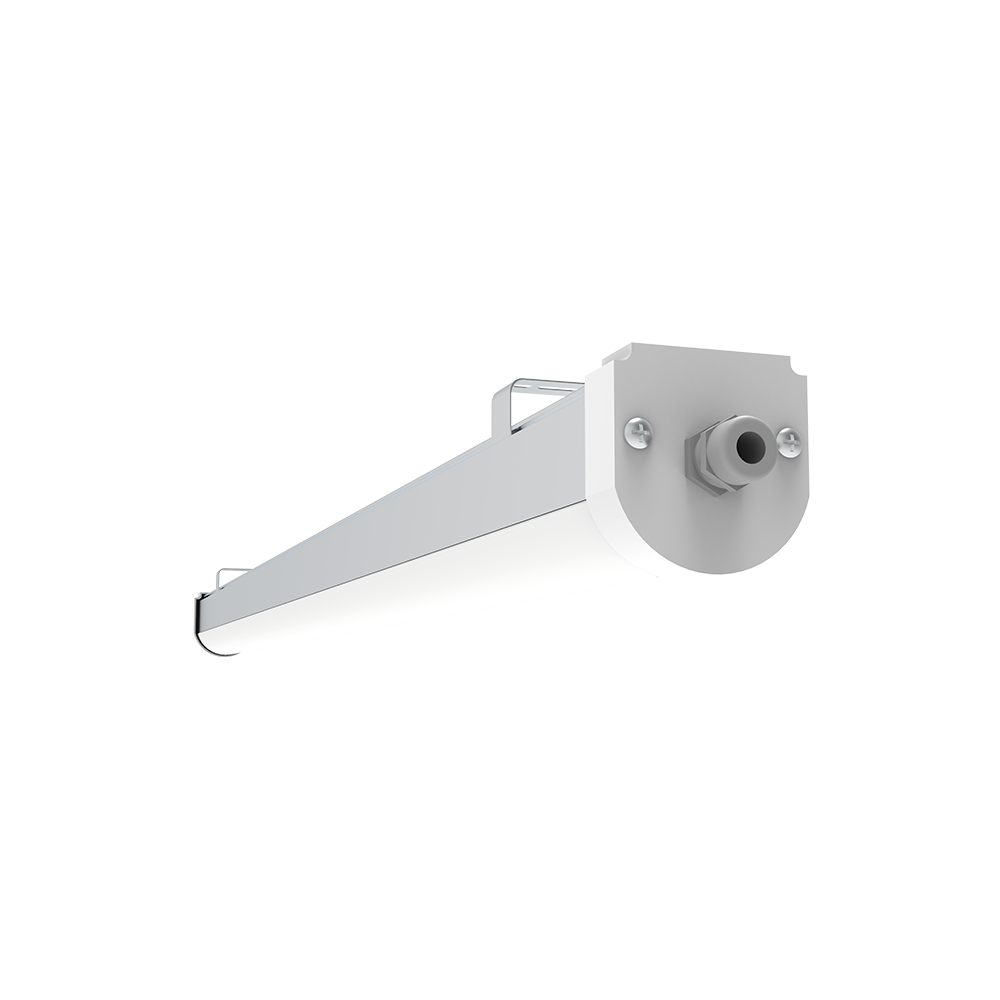

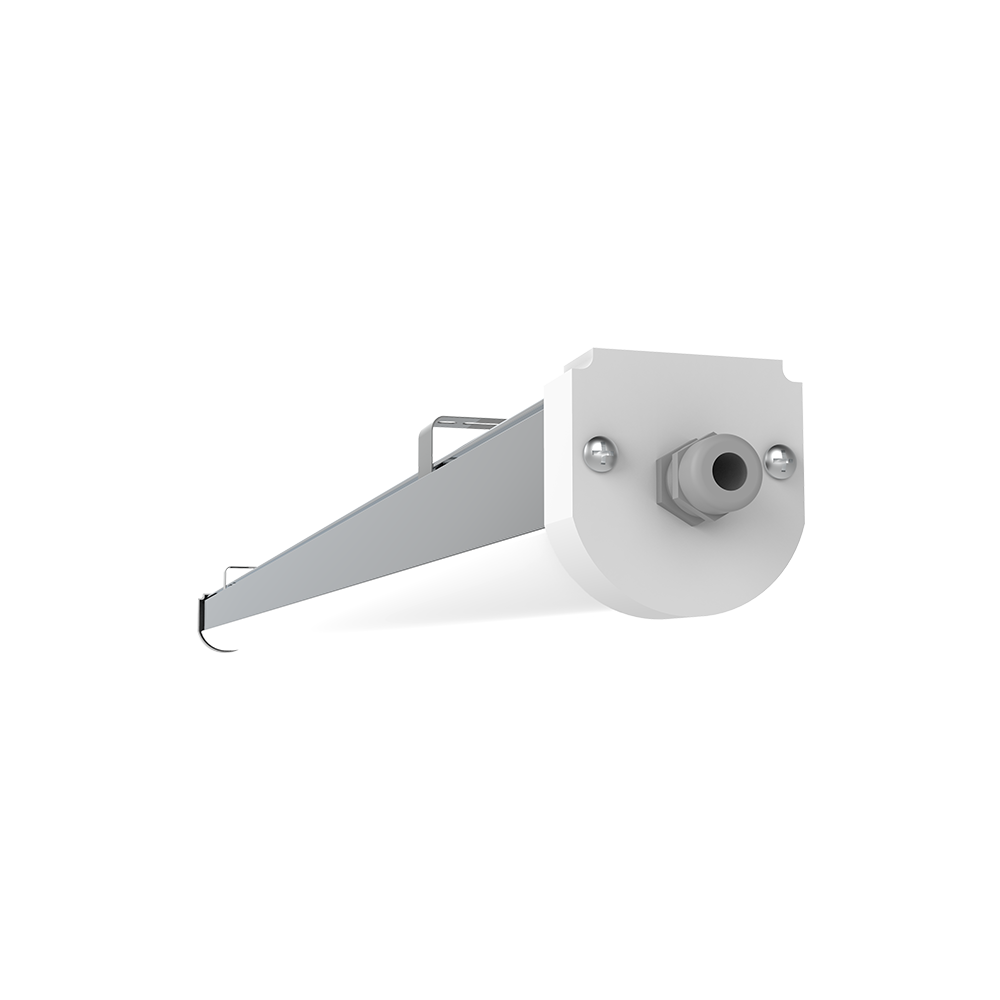

AKASYA ALM - ALUMUNIUM BODY
Installation Guide
Technical Data
Body
Aluminum Anodized Body
Diffuser
Polycarbonate Glass
Optic
-
Source of Light
Mid Power LED
IP Protection Class
IP54
Impact Resistance (IK)
IK09
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.95
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Surface Mounted
Product Code
VL569018-ALM
Power
18W
Lumen
1.850
Weight
0,64
Dimensions(mm)
620 x 54 x 59
Datasheet
/
Datasheet
LDT
/
Ldt
Product Code
VL569030-ALM
Power
30W
Lumen
3.051
Weight
0,87
Dimensions(mm)
1023 x 54 x 59
Datasheet
/
Datasheet
LDT
/
Ldt
Product Code
VL569036-ALM
Power
36W
Lumen
3.687
Weight
1,05
Dimensions(mm)
1190 x 54 x59
Datasheet
/
Datasheet
LDT
/
Ldt
Product Code
VL569045-ALM
Power
45W
Lumen
4.518
Weight
1,05
Dimensions(mm)
1190 x 54 x59
Datasheet
/
Datasheet
LDT
/
Ldt
Product Code
VL569055-ALM
Power
55W
Lumen
5.627
Weight
1,37
Dimensions(mm)
1500 x 54 x 59
Datasheet
/
Datasheet
LDT
/
Ldt
