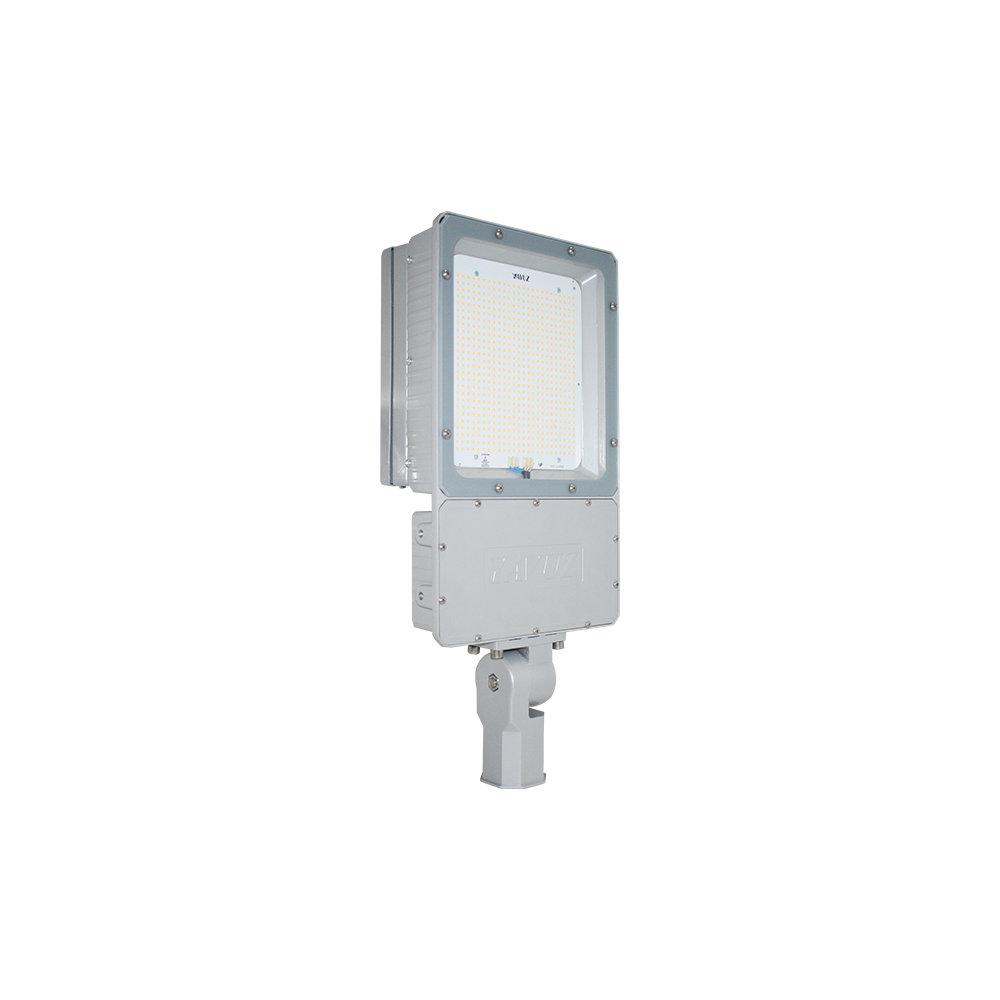

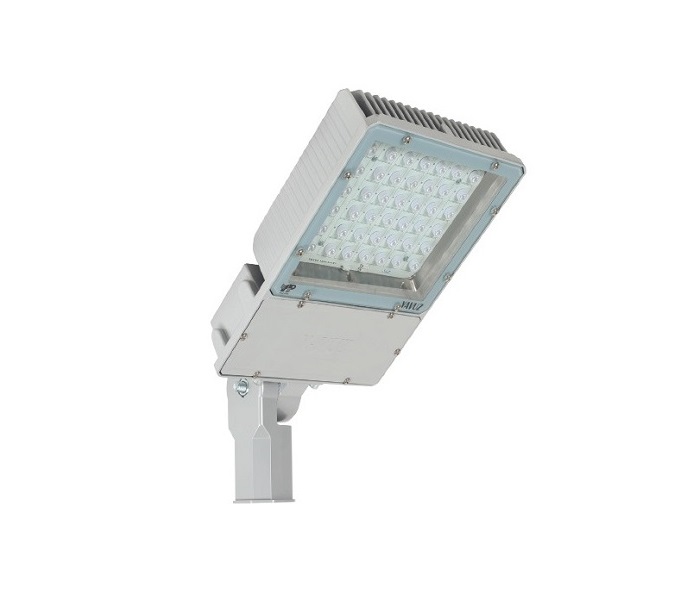

Road and Street LED Luminaire

Installation Guide Technical Data Body Aluminium Injection Body Diffuser Tempered Glass Optic Symmetrical - Asymmetric Source of Light High Power LED IP Protection Class IP66 Impact Resistance IK10 Input Voltage 220-240V AC 50/60 Hz Max. Voltage Strength 2-10 kV Driving Current 700 mA Power Factor >0.95 Color Rendering Index >80 Led Life 60.000 Hour Usage Pole Mount

---

Product Code VL548045-A

Power 45W

Lumen 6.350

Weight 6,20

Dimensions(mm) 532 x 288 x 80

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL548060-A

Power 60W

Lumen 8.139

Weight 6,29

Dimensions(mm) 532 x 288 x 80

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL548075-A

Power 80W

Lumen 10.316

Weight 6,30

Dimensions(mm) 532 x 288 x 80

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL548090-A

Power 100W

Lumen 12.318

Weight 3.-,31

Dimensions(mm) 532 x 288 x 80

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL548120-A

Power 120W

Lumen 14.416

Weight 6,90

Dimensions(mm) 532 x 288 x 80

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL548150-A

Power 150W

Lumen 18.025

Weight 6,90

Dimensions(mm) 532 x 288 x 80

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL548180-A

Power 180W

Lumen 21.600

Weight 7,00

Dimensions(mm) 532 x 288 x 80

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL548200-A

Power 200W

Lumen 24.627

Weight 7,00

Dimensions(mm) 532 x 288 x 80

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL548250-A

Power 250W

Lumen 30.045

Weight 9,00

Dimensions(mm) 676 x 300 x 80

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL548300-A

Power 300W

Lumen 36.175

Weight 9,70

Dimensions(mm) 676 x 300 x 80

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL548400-A

Power 400W

Lumen 59.071

Weight 11,28

Dimensions(mm) 676 x 300 x 138

Datasheet / Datasheet

LDT / Ldt

---

Product Code VL548500-A

Power 500W

Lumen 70.654

Weight 11,28

Dimensions(mm) 676 x 300 x 138

Datasheet / Datasheet

LDT / Ldt

---
