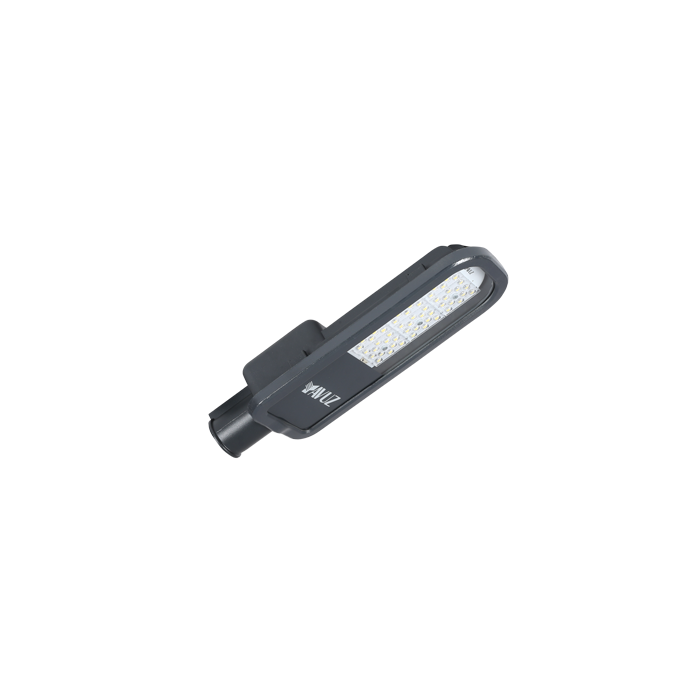

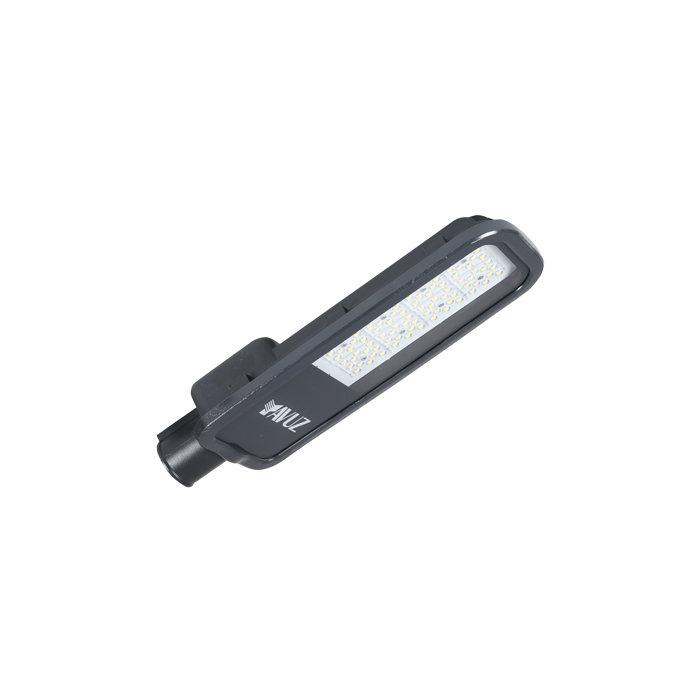

Road and Street LED Luminaire
Installation Guide
Technical Data
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.95
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Pole Mount
Product Code
VL548030
Power
30W
Lumen
3.862
Weight
1,60
Dimensions(mm)
378 x 143 x 68
Datasheet
/
Datasheet
LDT
/
Ldt
Product Code
VL548045
Power
45W
Lumen
5.317
Weight
1,70
Dimensions(mm)
378 x 143 x 68
Datasheet
/
Datasheet
LDT
/
Ldt
Product Code
VL548060
Power
60W
Lumen
8.239
Weight
2,70
Dimensions(mm)
454 x 170 x 75
Datasheet
/
Datasheet
LDT
/
Ldt
Product Code
VL548075
Power
75W
Lumen
11.055
Weight
2,70
Dimensions(mm)
609 x 200 x 80
Datasheet
/
Datasheet
LDT
/
Ldt
Product Code
VL548090
Power
100W
Lumen
14.192
Weight
3,50
Dimensions(mm)
609 x 200 x 80
Datasheet
/
Datasheet
LDT
/
Ldt
Product Code
VL548120
Power
120W
Lumen
16.479
Weight
4,00
Dimensions(mm)
609 x 200 x 80
Datasheet
/
Datasheet
LDT
/
Ldt
Product Code
VL548150
Power
150W
Lumen
19.746
Weight
4,50
Dimensions(mm)
609 x 200 x 80
Datasheet
/
Datasheet
LDT
/
Ldt
