High Ceiling Luminaire


Installation Guide


Technical Data

Body Aluminum Anodized Body
Diffuser Polycarbonate Glass
Optic -
Source of Light Power LED
IP Protection Class IP54
Impact Resistance (IK) IK09
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 2 kV
Driving Current 700 mA
Power Factor >0.98
Color Rendering Index >80
Led Life 100.000 Hour
Usage Ceiling Mount
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

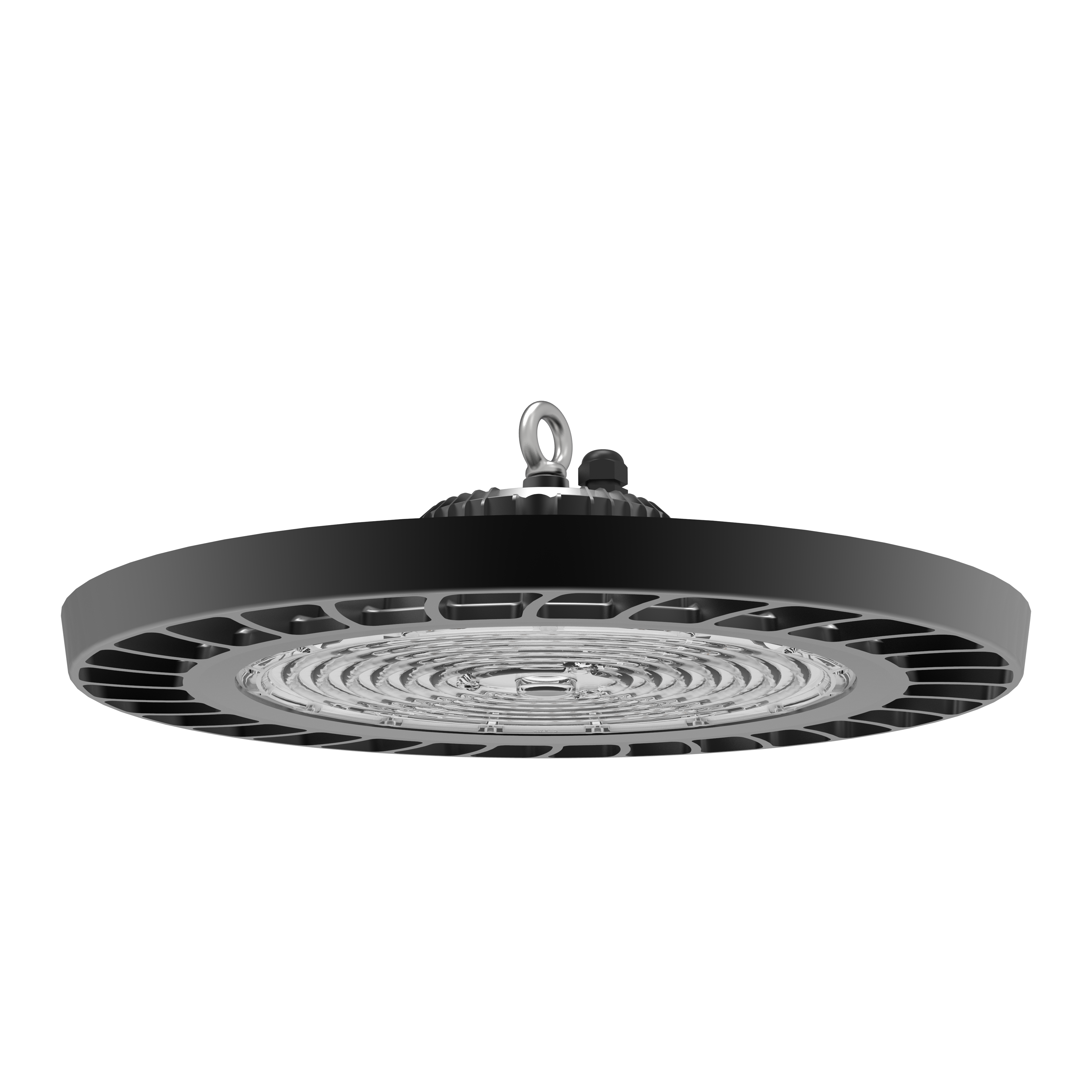

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

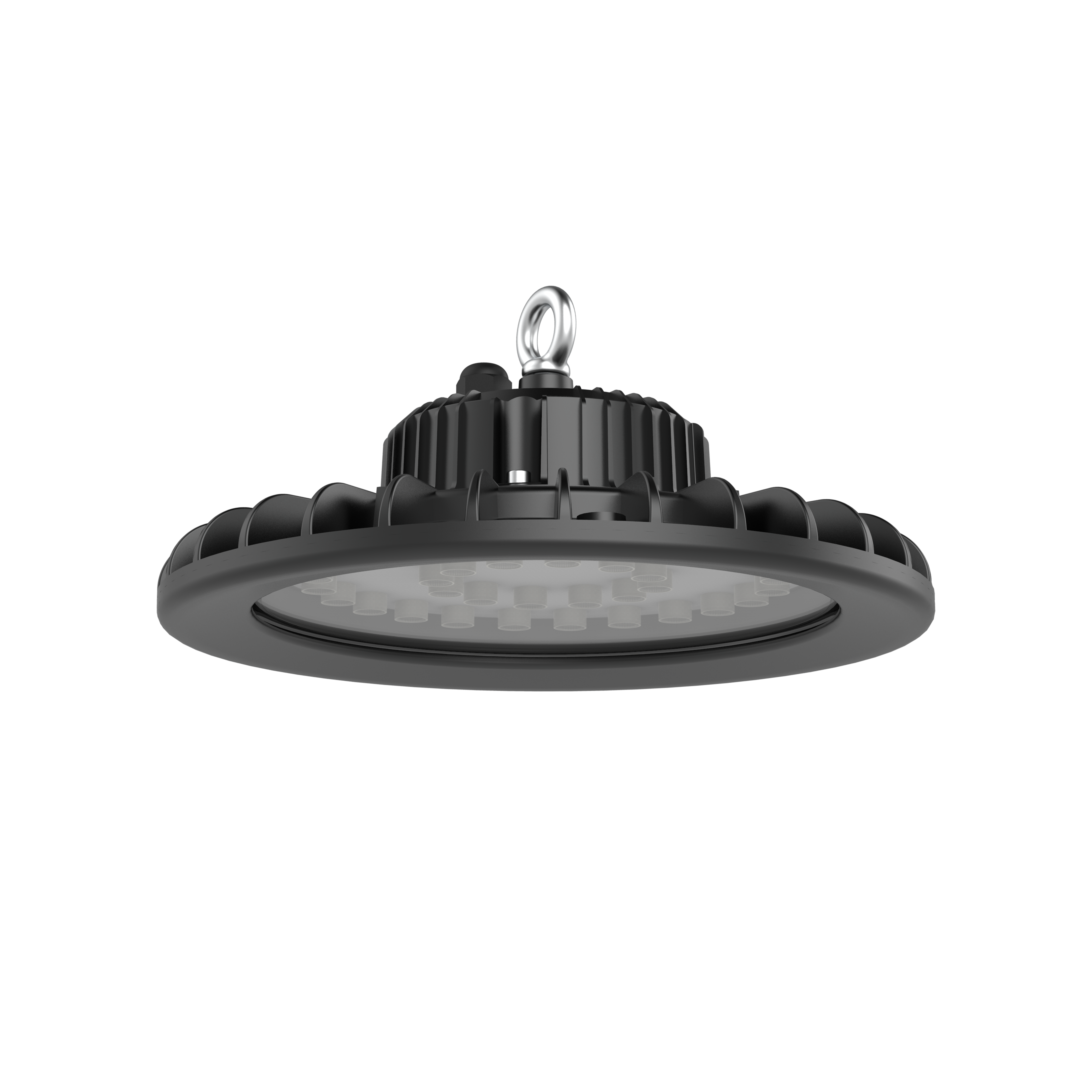

High Ceiling Luminaire

Details..

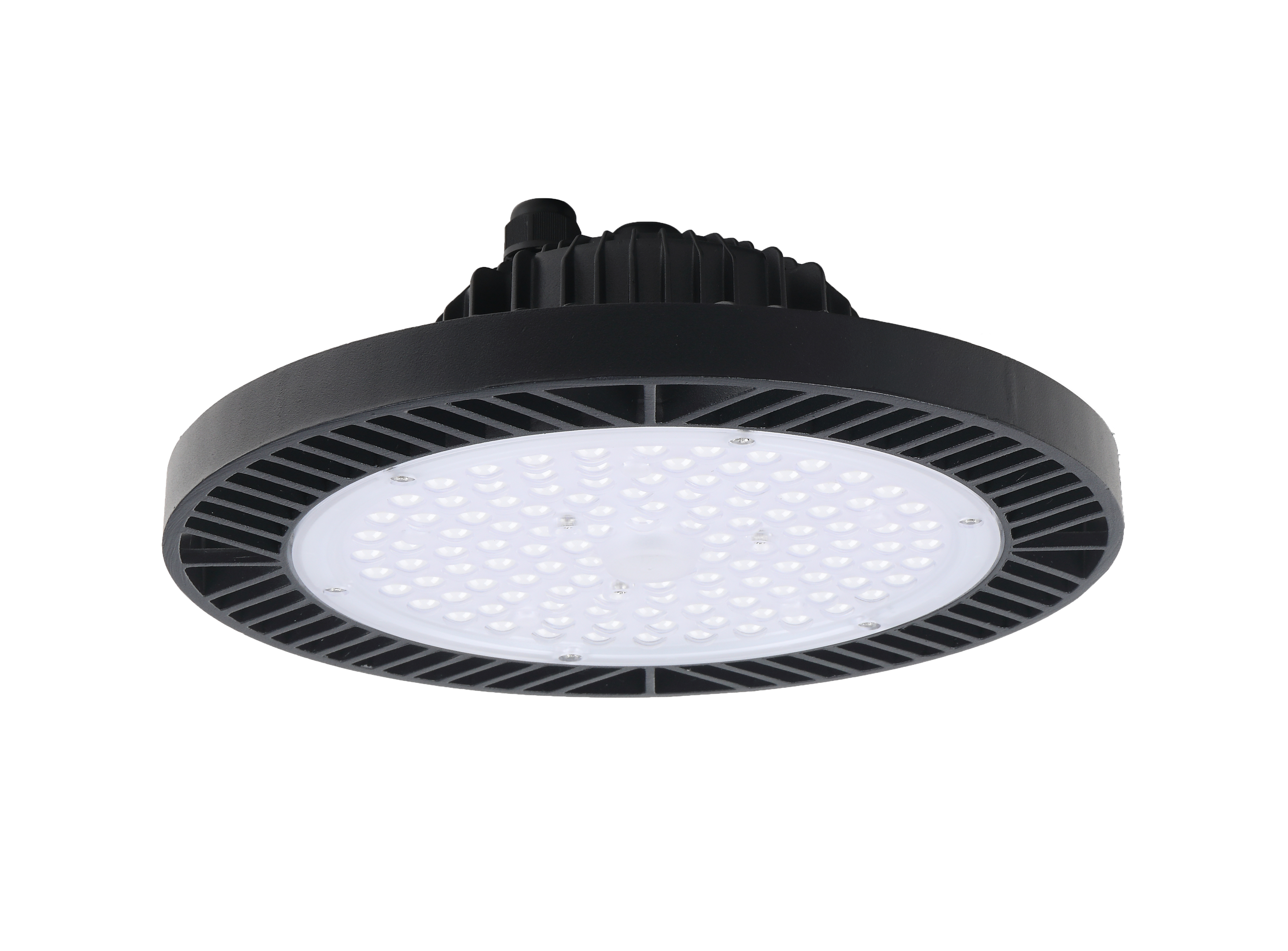

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..
High Ceiling Luminaire


Installation Guide


Technical Data

Body Aluminum Anodized Body
Diffuser Polycarbonate Glass
Optic -
Source of Light Power LED
IP Protection Class IP54
Impact Resistance (IK) IK09
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 2 kV
Driving Current 700 mA
Power Factor >0.98
Color Rendering Index >80
Led Life 100.000 Hour
Usage Ceiling Mount
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..
High Ceiling Luminaire


Installation Guide


Technical Data

Body Aluminum Anodized Body
Diffuser Polycarbonate Glass
Optic -
Source of Light Power LED
IP Protection Class IP54
Impact Resistance (IK) IK09
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 2 kV
Driving Current 700 mA
Power Factor >0.98
Color Rendering Index >80
Led Life 100.000 Hour
Usage Ceiling Mount
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..
High Ceiling Luminaire


Installation Guide


Technical Data

Body Aluminum Anodized Body
Diffuser Polycarbonate Glass
Optic -
Source of Light Power LED
IP Protection Class IP54
Impact Resistance (IK) IK09
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 2 kV
Driving Current 700 mA
Power Factor >0.98
Color Rendering Index >80
Led Life 100.000 Hour
Usage Ceiling Mount
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..
High Ceiling Luminaire


Installation Guide


Technical Data

Body Aluminum Anodized Body
Diffuser Polycarbonate Glass
Optic -
Source of Light Power LED
IP Protection Class IP54
Impact Resistance (IK) IK09
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 2 kV
Driving Current 700 mA
Power Factor >0.98
Color Rendering Index >80
Led Life 100.000 Hour
Usage Ceiling Mount
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..
High Ceiling Luminaire


Installation Guide


Technical Data

Body Aluminum Anodized Body
Diffuser Polycarbonate Glass
Optic -
Source of Light Power LED
IP Protection Class IP54
Impact Resistance (IK) IK09
Input Voltage 220-240V AC 50/60 Hz
Max. Voltage Strength 2 kV
Driving Current 700 mA
Power Factor >0.98
Color Rendering Index >80
Led Life 100.000 Hour
Usage Ceiling Mount
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..

High Ceiling Luminaire

Details..
Center Office & Showroom

Bankalar Cad. Yanıkkapı Porsuk Sok. Köse Han No 2/1 Karaköy / İstanbul



yavuzpano@yavuzpano.com.tr


T : +90 212 254 39 21
F : +90 212 254 39 64
Kocaeli Factory

Cumhuriyet Mah. Selin Sok. No : 3
Çayırova/Gebze/Kocaeli/TÜRKİYE



yavuzpano@yavuzpano.com.tr


T : +90 262 658 15 11 Pbx
F : +90 262 658 15 12
Follow Me

Do not forget to follow us on Social Media to be informed about the latest developments about us.

All Rights Reserved YAVUZ Pano Aydınlatma © 2020
High Ceiling Luminaire


Installation Guide


Technical Data

Body
Aluminum Anodized Body
Diffuser
Polycarbonate Glass
Optic
-
Source of Light
Power LED
IP Protection Class
IP54
Impact Resistance (IK)
IK09
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.98
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Ceiling Mount
Body
Aluminum Anodized Body
Diffuser
Tempered Glass
Optic
-
Source of Light
Mid Power LED
IP Protection Class
IP66
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.95
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Ceiling Mount
Body
Aluminum Anodized Body
Diffuser
Tempered Glass
Optic
Symmetrical
Source of Light
Mid Power LED
IP Protection Class
IP66
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.95
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Ceiling Mount
Body
Aluminium Injection Body
Diffuser
Tempered Glass / Polycarbonate Lens
Optic
Symmetrical
Source of Light
Power LED
IP Protection Class
IP66
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
10 kV
Driving Current
700 mA
Power Factor
>0.95
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Surface Mounted
Body
Aluminium Injection Body
Diffuser
Polycarbonate Lens
Optic
Symmetrical
Source of Light
Mid Power LED
IP Protection Class
IP66
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.9
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Surface Mounted
Body
Aluminium Injection Body
Diffuser
Tempered Glass
Optic
Lens
Source of Light
Power LED
IP Protection Class
IP67
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2-10 kV
Driving Current
700 mA
Power Factor
>0.95
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Ceiling Mount
Body
Aluminium Anodized Body
Diffuser
Tempered Glass
Source of Light
Power LED
IP Protection Class
IP66
Impact Resistance (IK)
IK10
Input Voltage
220-240V AC 50/60 Hz
Max. Voltage Strength
2 kV
Driving Current
700 mA
Power Factor
>0.95
Color Rendering Index
>80
Led Life
100.000 Hour
Usage
Ceiling Mount
Product Code
VL528065-S
Power
65W
Lumen
9360
Weight
1,50
Dimensions(mm)
626 x 140 x 68
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL528080-S
Power
80W
Lumen
11520
Weight
1,50
Dimensions(mm)
626 x 140 x 68
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL528095-S
Power
95W
Lumen
13775
Weight
2,00
Dimensions(mm)
926 x 140 x 68
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL528095-S-120
Power
95W
Lumen
13965
Weight
2,50
Dimensions(mm)
1226 x 140 x 68
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL5280125-S
Power
125W
Lumen
17875
Weight
2,50
Dimensions(mm)
1226 x 140 x 68
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL528150-S
Power
150W
Lumen
21750
Weight
2,50
Dimensions(mm)
1226 x 140 x 68
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL528175-S
Power
175W
Lumen
25200
Weight
3,00
Dimensions(mm)
1508 x 140 x 68
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL528195-S
Power
195W
Lumen
27690
Weight
3,00
Dimensions(mm)
1508 x 140 x 68
Datasheet /
Datasheet
LDT /
Ldt
