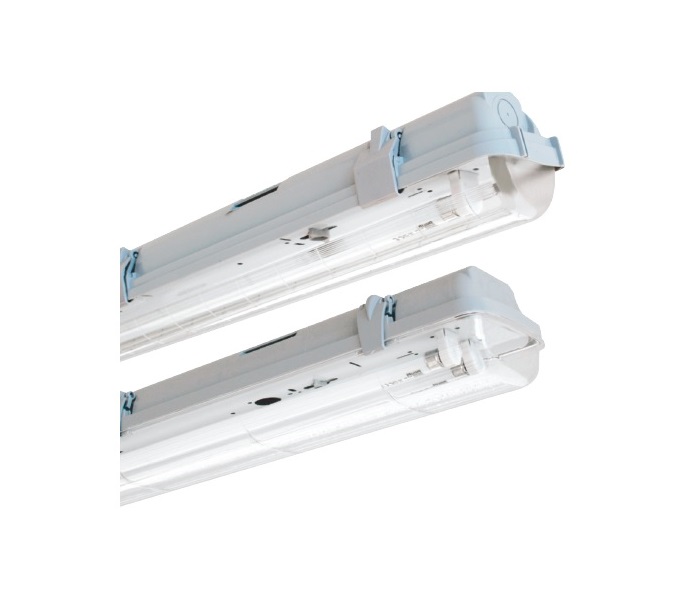

KAMELYA - T8 PC WATERPROOF


Installation Guide


Technical Data

Body                                  PC Body
Glass                                   PC Glass
Reflector                          0.40 mm Electrostatic Powder Coated Sheet
Operating Voltage            220 V - 240 V AC 50 - 60 Hz
Ballast                               Electronic Ballast
Quality Certificate         TS 8698 EN 60598-2-1
Product Code Power(w) Lumen Ağırlık(kg) Dimensions(mm) Datasheet LDT


Have You Examined Our Similar Products?

KAMELYA - T8 PC WATERPROOF

Details..

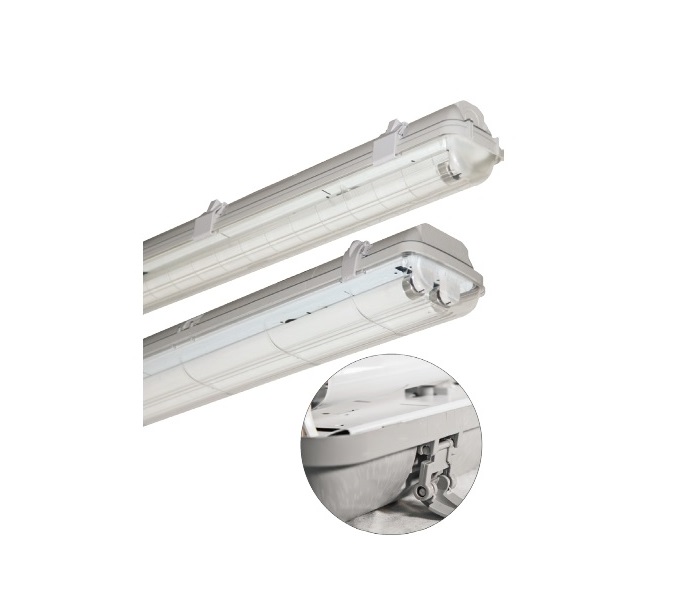

KAMELYA - T5 PC WATERPROOF

Details..
Center Office & Showroom

Bankalar Cad. Yanıkkapı Porsuk Sok. Köse Han No 2/1 Karaköy / İstanbul



yavuzpano@yavuzpano.com.tr


T : +90 212 254 39 21
F : +90 212 254 39 64
Kocaeli Factory

Cumhuriyet Mah. Selin Sok. No : 3
Çayırova/Gebze/Kocaeli/TÜRKİYE



yavuzpano@yavuzpano.com.tr


T : +90 262 658 15 11 Pbx
F : +90 262 658 15 12
Follow Me

Do not forget to follow us on Social Media to be informed about the latest developments about us.

All Rights Reserved YAVUZ Pano Aydınlatma © 2020
KAMELYA - T8 PC WATERPROOF


Installation Guide


Technical Data
Product Code
VL361118
Power
1x18
Lumen
Weight
1,75
Dimensions(mm)
675 x 80 x 85
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL361218
Power
2x18
Lumen
Weight
1,85
Dimensions(mm)
675 x 120 x 85
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL361136
Power
1x36
Lumen
Weight
2,40
Dimensions(mm)
1250 x 80 x 85
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL361236
Power
2x36
Lumen
Weight
3,50
Dimensions(mm)
1250 x 120 x 85
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL361158
Power
1x58
Lumen
Weight
2,15
Dimensions(mm)
1550 x 80 x 85
Datasheet /
Datasheet
LDT /
Ldt
Product Code
VL361258
Power
2x58
Lumen
Weight
2,80
Dimensions(mm)
1550 x 120 x 85
Datasheet /
Datasheet
LDT /
Ldt
